TERAOKA 650S#25

TERAOKA 650S#25

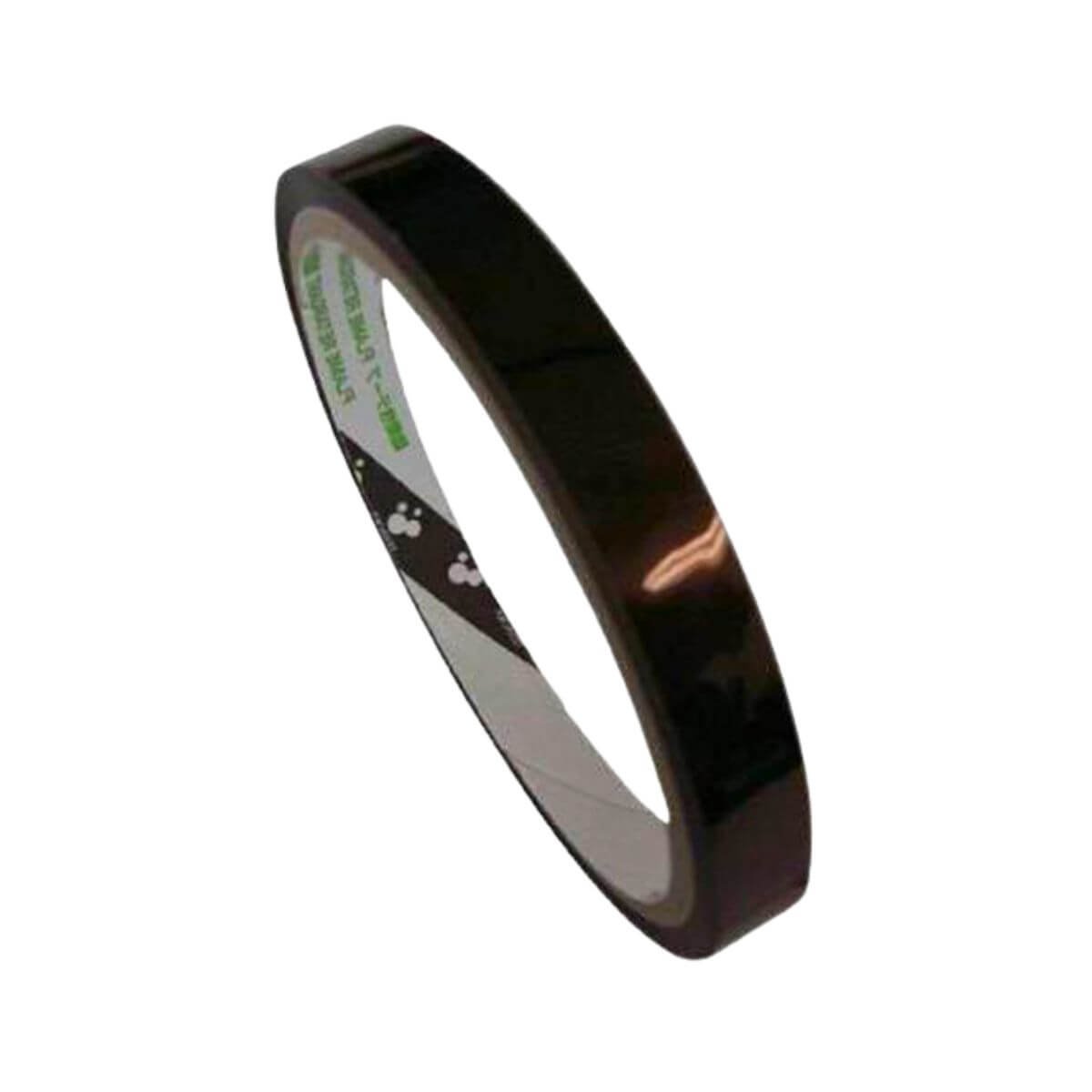

TERAOKA 650S#25  is a Kapton (polyimide) film with superior heat resistance and resistance to chemicals applied with a heat-resistant silicone-based adhesive.
Optimal for use in the insulation of electrical components and parts requiring heat protection, heat-resistant masking, splicing of heat-resistant film, and component feeds during heat-resistant processing.

  • Thickness: 0.05mm
  • Length: 20 / 50m
  • Backing: Kapton film
  • Adhesive: silicone
Overall thickness (mm)0.050
Standard length (m)20、50
Peel adhesion(N(gf)/W25mm)5.39(550)
Tensile strength(N/25mm)122.6
Elongation(%)50
Breakdown voltage(kV)70

TERAOKA 650S#25 Features

  • Excellent for heat resistant at high temperatures.
  • The silicone-based adhesive has a characteristic of less adhesive residue after removal.
  • UL510 Flame retardant.
  • UL temperature rated 200℃.

TERAOKA 650S#25 Applications

  • Fixing and electrical insulation of parts required thin and heat resistance.
  • For splicing TAB(Tape Automated Bonding), heat-resistant film, etc.
  • For solder plating masking, masking plating, etc.
  • Drying paint at high temperature.
  • The conveyance of parts at the time of the heat process.
