3M 69

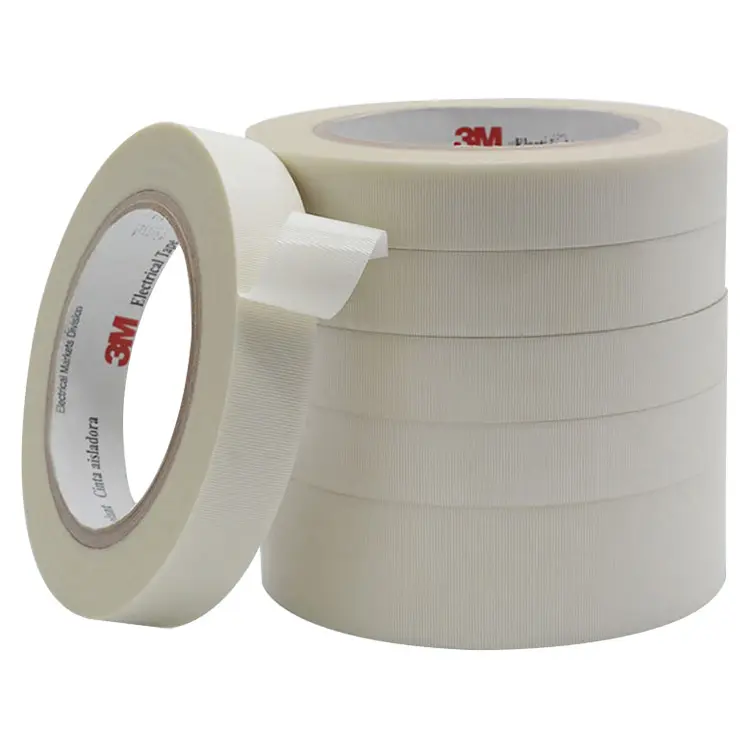

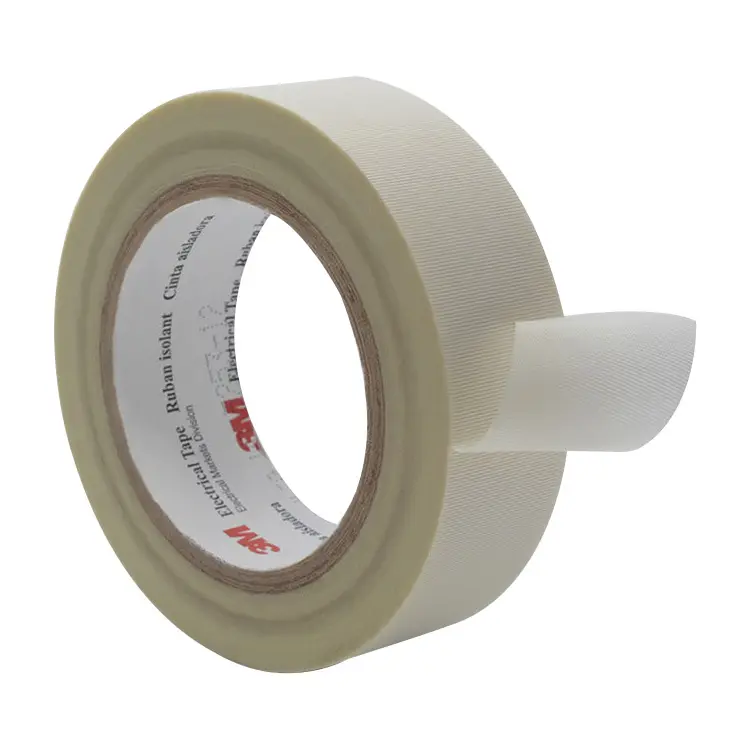

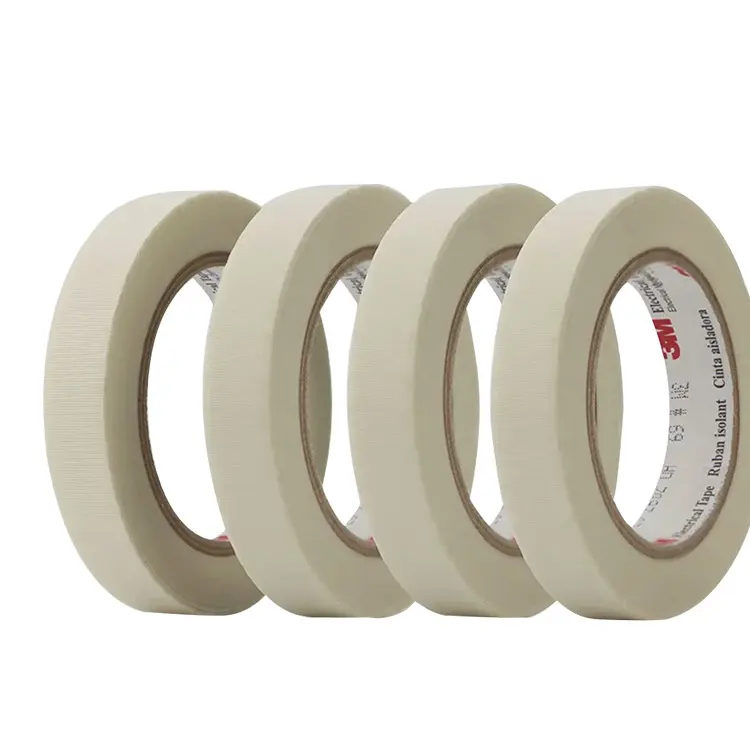

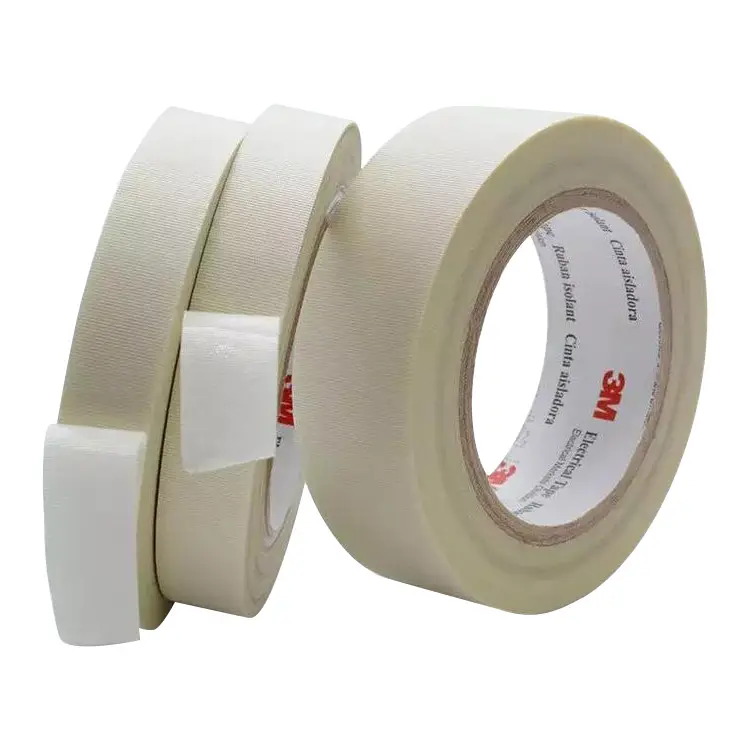

3M 69 is a white, 7-mil (0.178 mm) thick tape composed of a 5-mil (0.127 mm) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

  • Color: White
  • Backing: Glass Cloth
  • Adhesive: Thermosetting silicone
  • Thickness: 7 mil | 0.178mm
  • Backing thickness: 5 mil | 0.127mm
  • Adhesion to steel: 30 oz/ inch | 3.3N/cm
  • Thermosetting, silicon adhesive provides an increased bond at high temperatures
  • Glass cloth backing optimally resists resisting shrinking and burning
  • Used as a coil cover, anchor, banding, core, layer, and crossover insulation
  • Printable and provides high mechanical strength and excellent performance by withstanding high temperatures
  • Withstands a temperature range of 32 to 392 °F (0 to 200 °C)
  • UL Listed, Mil-I-19166C, CSA Certified, and RoHS 2011/65/EU Compliant
3M 69
3M 69
3M 69
3M 69

3M 69 Features

  • 3M 69 Glass Cloth Electrical Tape features a pressure-sensitive, high-temperature, thermosetting, silicone adhesive that offers excellent bonding once adhered.
  • This conformable tape has a glass cloth backing that resists rotting and shrinking while providing excellent stability.
  • It withstands a temperature range of 32 to 392 °F (0 to 200 °C). UL Listed, Mil I 19166C, CSA Certified, and ‎RoHS 2011/65/EU Compliant.

3M 69 Applications

  • 3M 69 is a premium grade, edge tear-resistant, electrical tape.
  • This printable tape has a noncorrosive adhesive and offers solvent-resistant protection. It is used as a coil cover, an anchor, a banding, a core, a layer, and a crossover insulator.
  • The flame retardant tape is suitable for 600V-rated, dry-location application motors and transformers.
