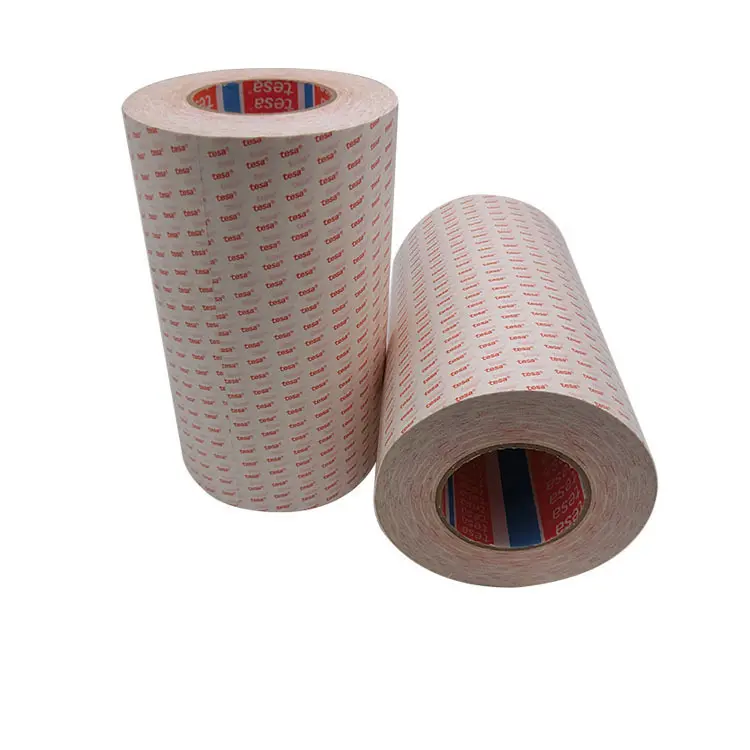

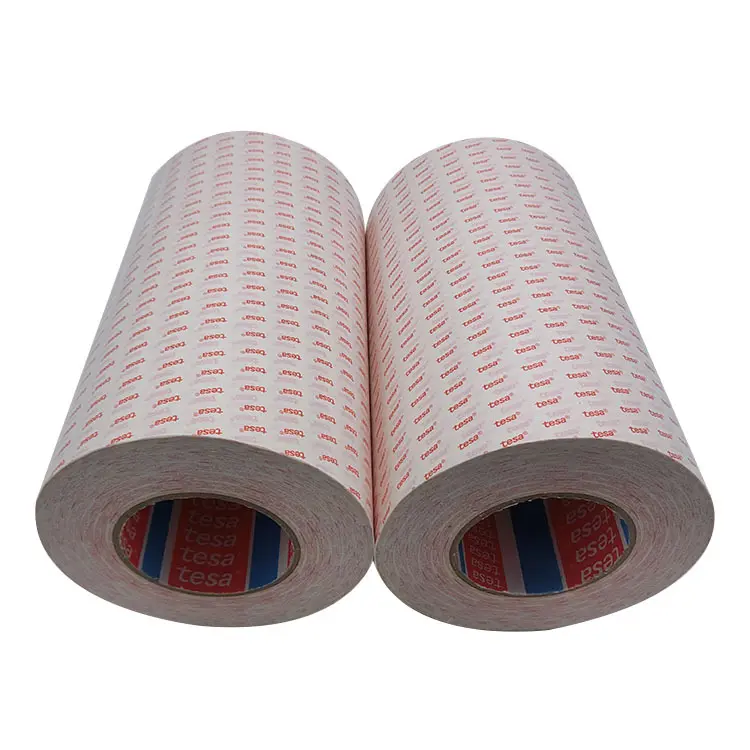

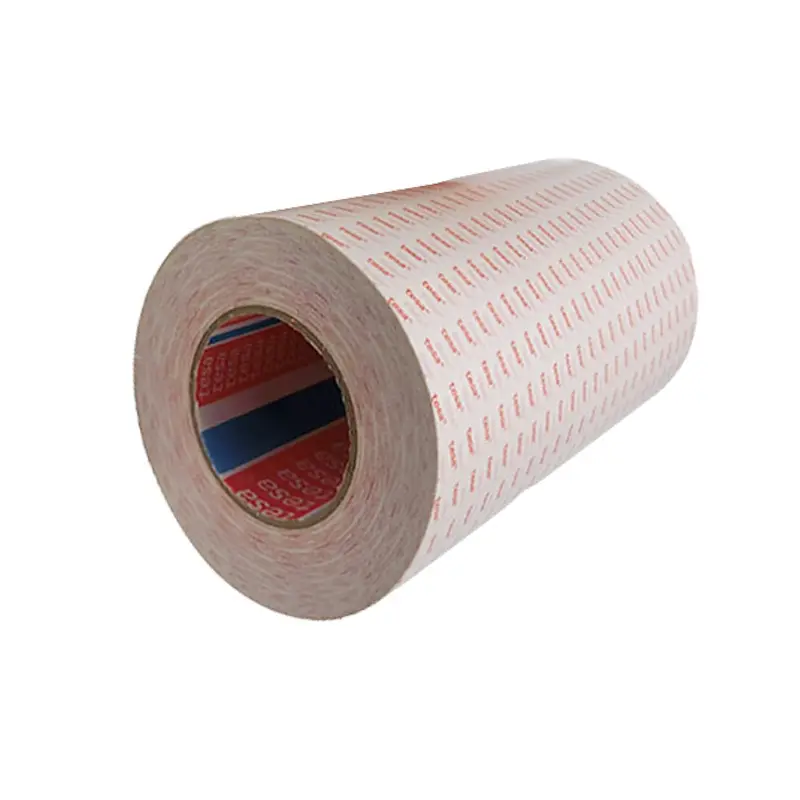

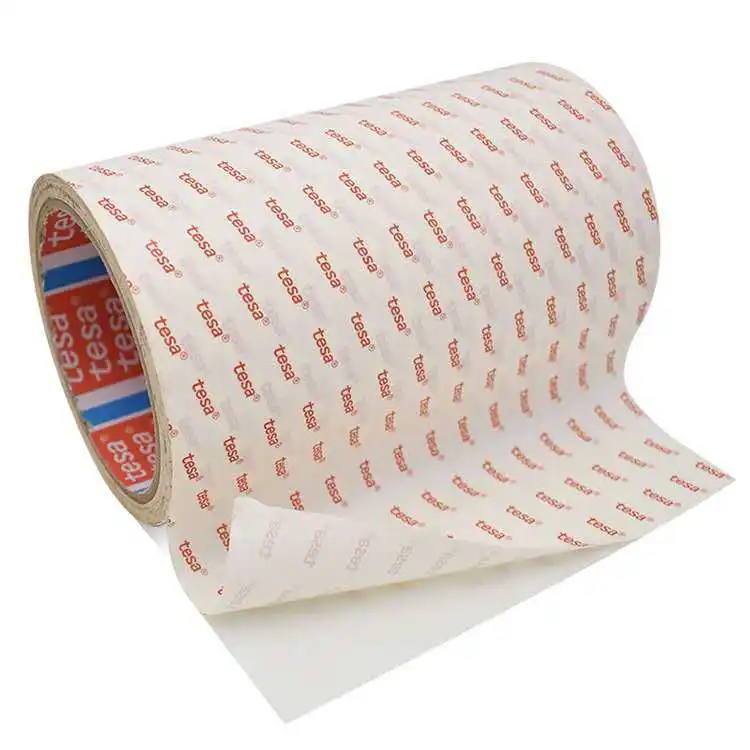

TESA 8851

TESA 8851 is 30µm double-sided translucent non-woven tape

  • Weight of liner: 82 g/m²
  • Backing material: ultra-thin non-woven
  • Type of adhesive: tackified acrylic, acrylic, advanced acrylic, modified acrylic
  • Total thickness: 30 µm
  • Color: translucent, transparent, optically clear
  • Color of liner: white/red logo
  • The thickness of liner:71 µm

TESA 8851 is an ultra-thin double-sided non-woven tape, which has excellent temperature resistance properties, ideal for micro-speaker dome mounting and FPC mounting applications.
The temperature-resistant glassine liner ensures it can be easily released after the solder reflow process.

TESA 8851
TESA 8851
TESA 8851
TESA 8851

TESA 8851 Features

  • The double-sided translucent non-woven tape has sufficient adhesion and high retention after the welding reflow process
  • High tensile strength
  • Excellent die-cutting performance, the special base material is not easy to overflow
  • It is highly conformable to uneven surfaces
  • High aging resistance
  • Comply with existing ROHS standards
  • Ultra-thin double-sided non-woven tape
  • Stable holding power and peel strength after high-temperature process
  • Excellent die-cutting properties and very low oozing due to a special backing
  • High conformability for uneven surfaces
  • Conformity to RoHS regulationsTESA 8851 is made from a special tackified acrylic adhesive system and uses an ultra-thin non-woven backing, which offers excellent temperature resistance up to 260°C and excellent converting performance.

TESA 8851 Applications

  • FPC pasting of electronic parts, suitable for high-temperature process environment
  • Micro speaker dome mounting application
  • FPC mounting application
  • Mounting of electronics components, subjected to high-temperature process
