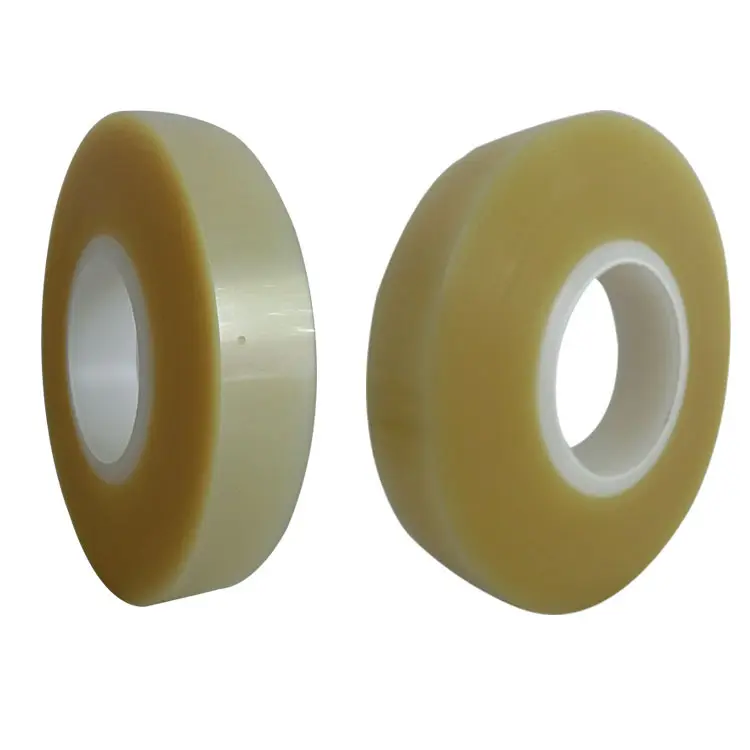

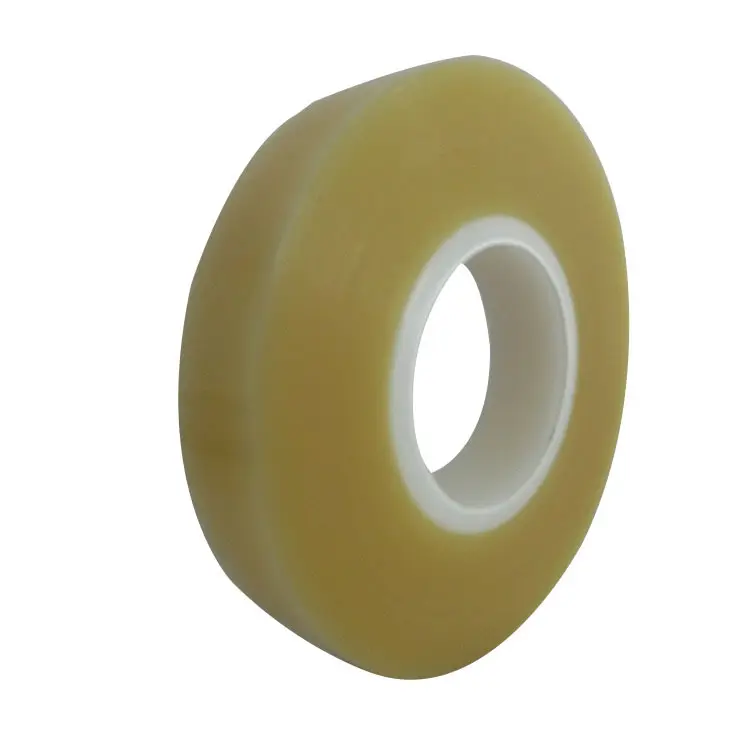

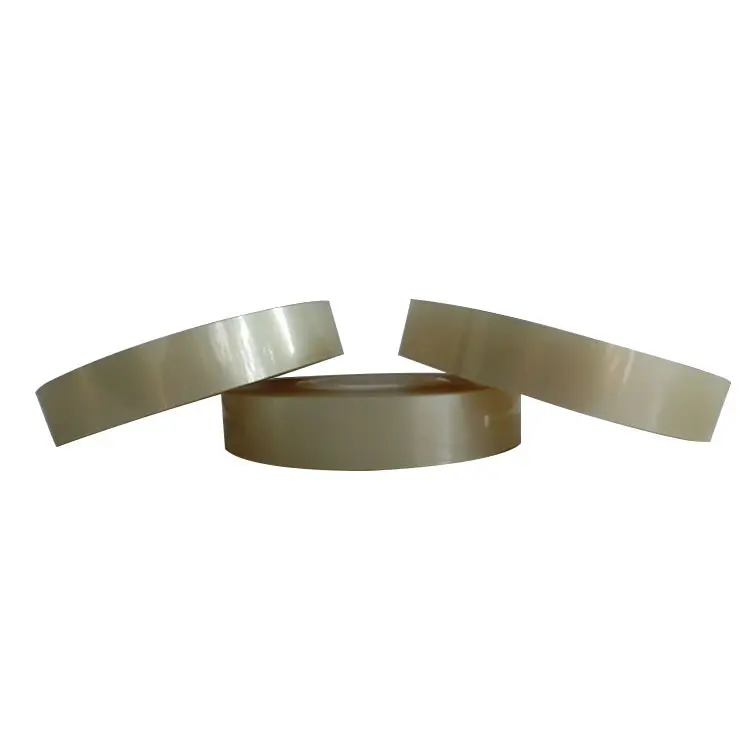

NITTO 5603

NITTO 5603 and No. 5603BN are 0.03mm thickness double-coated adhesive tapes.
The tapes have a #4 polyester film as a base coated on both sides with acrylic adhesive and offer superior bonding to plastic films and moldings.
A mere 0.03-mm thick, the tape facilitates thinner electronic equipment.
The double-coated adhesive tapes also offer superior adhesion to rough surfaces.

  • Tape thickness (mm): 0.03
  • Width (mm): 16~500
  • Length (M): 100
  • No.5601/No.5603 provide superior processability employing dust-free materials.
NITTO 5603
NITTO 5603
NITTO 5603
NITTO 5603

NITTO 5603 Features

  • The tape thickness is 0.03 mm. Can be used for bonding in limited spaces or clearances.
  • Uses thin #4 polyester film for superior conversion prior to use.
  • Offers strong bonding to PC housing, optical waveguide plates, and reflective sheets used for LCD backlight modules.
  • Halogen-free type. (We do not use chlorine compounds on purpose for this product.)
  • The ten hazardous materials restricted by the RoHS directive are not compounded.

NITTO 5603 Applications

  • Fixing of reflective sheets used for LCD backlight modules for digital cameras and cellular telephones.
  • Fixing of parts for compact home appliances
