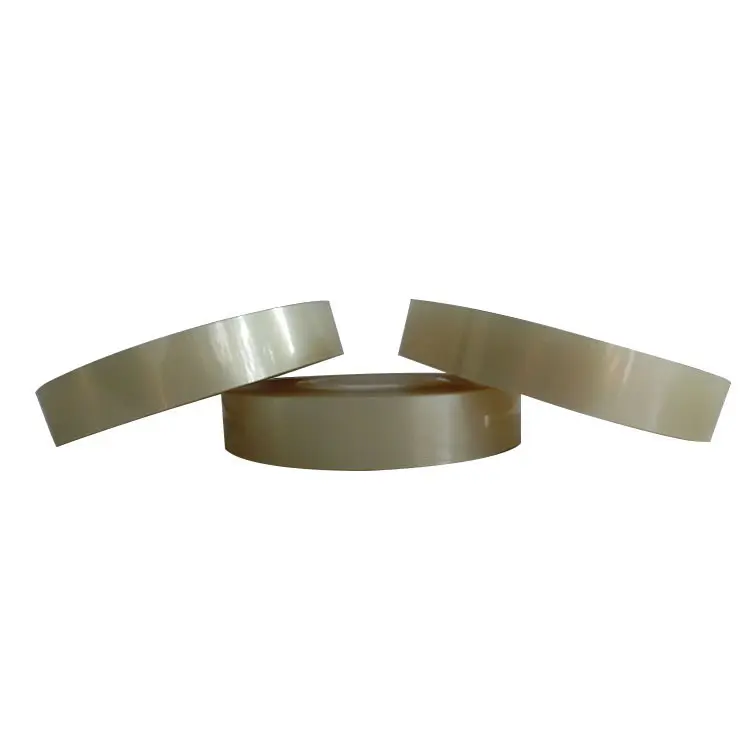

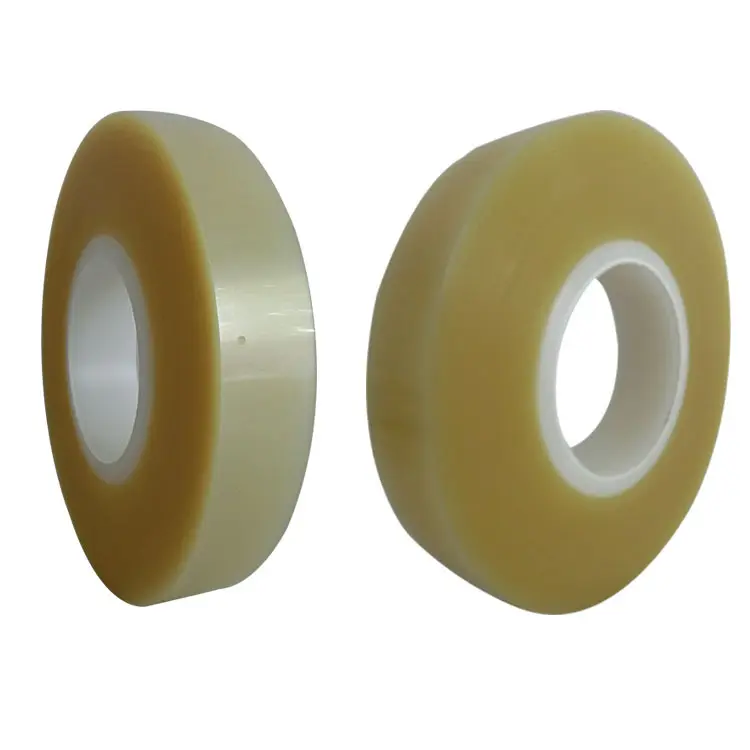

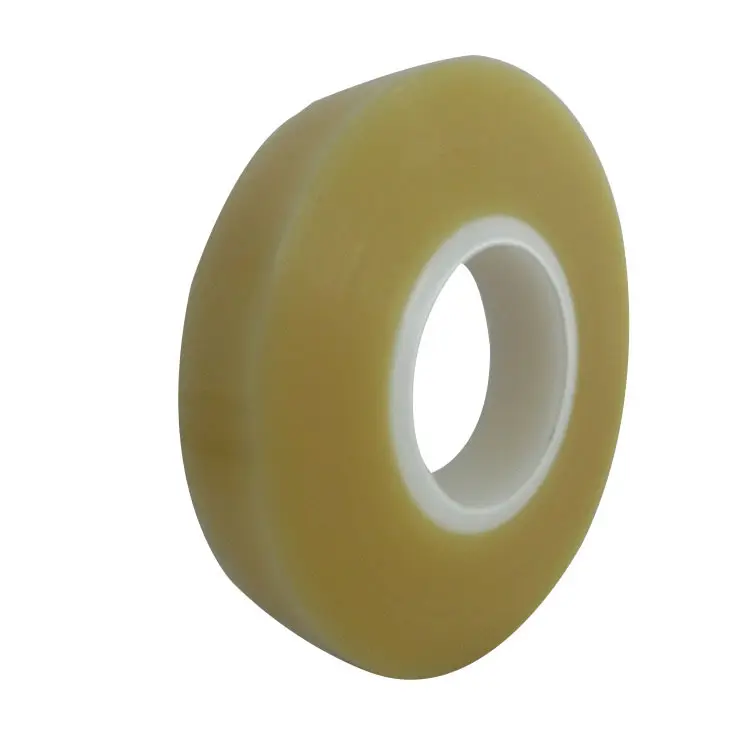

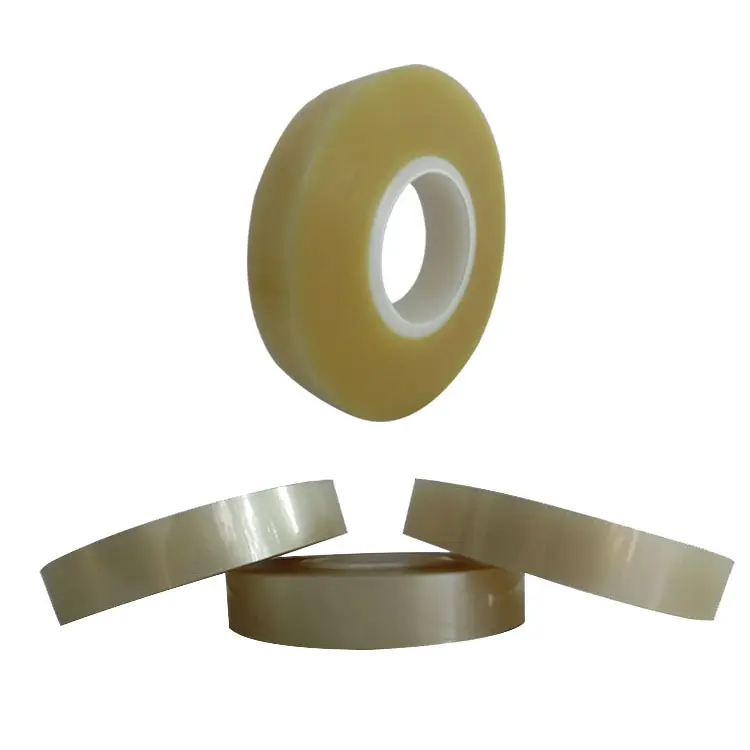

NITTO 5601

NITTO 5601 is 0.01mm thick double-coated adhesive tape.
The tape has a #2 polyester film as a base coated on both sides with acrylic adhesive and offers superior bonding performance to plastic films and moldings.
The tape facilitates thinner electronic equipment, as the tape thickness is 0.01mm.
Also, it has an excellent converting and working performance by using #2 polyester film

  • Tape thickness (mm): 0.01
  • Width (mm) : 16 - 500
  • Length (M): 100

No.5601/No.5603 provide superior processability employing dust-free materials.

NITTO 5601
NITTO 5601
NITTO 5601
NITTO 5601

NITTO 5601 Features

  • Suitable for bonding in limited space.
  • PET film carrier enables uniform tape thickness.
  • Excellent processability and workability provided by PET carrier.
  • Employs dust-free materials such as PET release liner and plastic core.
  • Halogen free.
  • The tape thickness is 0.01mm. Can be used for bonding in limited spaces or clearances.
  • Excellent thickness uniformity by using polyester film.
  • Uses thin #2 polyester film for superior conversion prior to use and offers less blocking and oozing.
  • Excellent bonding performance to plastic material.
  • The tape minimizes dust emission by using a polyester release liner and a plastic core.
  • Halogen-free type. (Chloride compounds are not used for this product.)
  • The ten hazardous materials restricted by the RoHS directive are not compounded.

NITTO 5601 Applications

  • Fixing of reflectors and films used for LCD backlight modules for devices such as mobile phones.
  • Fixing of film materials inside small electronic equipment.
  • Fixing of reflective sheets and optical waveguide films used for LCD backlight modules such as digital cameras and cellular phones.
  • Fixing of film for compact electronics.
  • Fixing of thin layered films, splicing, and fixing for metal foil end.
