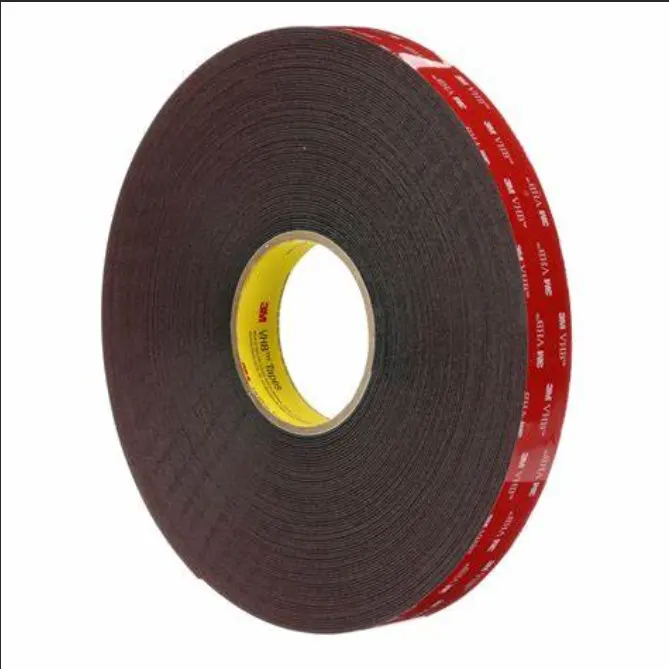

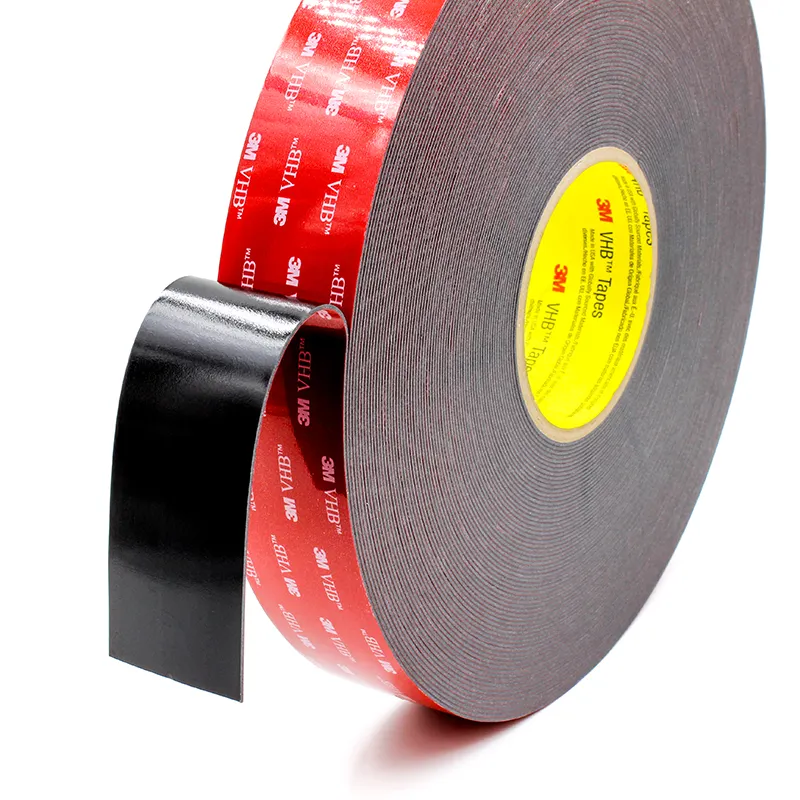

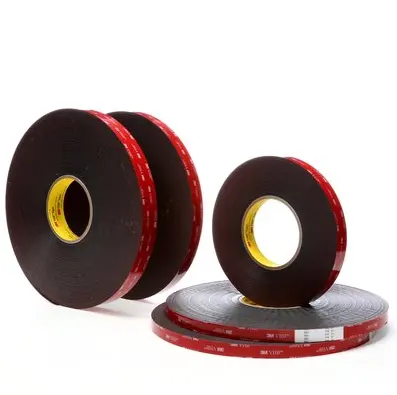

3M B23F

3M B23F. It is a black, 0.090 in. (2.3 mm), multi-purpose acrylic adhesive with a conformable foam core and film liner. It is commonly used for structural glazing.
The fast and easy to use permanent bonding method provides high strength and long-term durability.

  • Adhesive Type:Acrylic
  • Application:Structural Glazing
  • Backing (Carrier) Material:Acrylic Foam
  • Industries:Construction, Transportation, Metalworking, Signage
  • Product Color:Black

This tape provides an extraordinarily strong double sided foam tape that adheres to a range of substrates, including aluminum, painted aluminum and glass.
Our bonding tapes provide excellent strength, conformability, surface adhesion and temperature resistance.
The 3M™ VHB™ Structural Glazing Tape family is used to attach glass panels to metal frames in curtain wall systems, commercial windows and doors, skylight and canopy systems replacing commonly used mechanical fasteners, gaskets and structural silicone sealants.

3M B23F
3M B23F
3M B23F
3M B23F

3M B23F Features

  • The fast and easy-to-use permanent bonding method provides high strength and long-term durability
  • Virtually invisible fastening keeps surfaces smooth
  • Used as an alternative to structural silicone and spacer tapes/gaskets
  • Black, 0.090 in. (2.3 mm), multi-purpose adhesive and conformable acrylic foam core offers a good balance of strength and conformability
  • Creates a permanent seal against water, moisture, and more
  • Pressure-sensitive adhesive bonds on contact to provide immediate handling strength
  • Also available in gray with 3M™ VHB™ Structural Glazing Tape G23F
  • UL GREENGUARD and UL GREENGUARD Gold Certified, contributing to LEED Credit

3M B23F Applications

  • Attach glass panels to metal frames (structural glazing)
