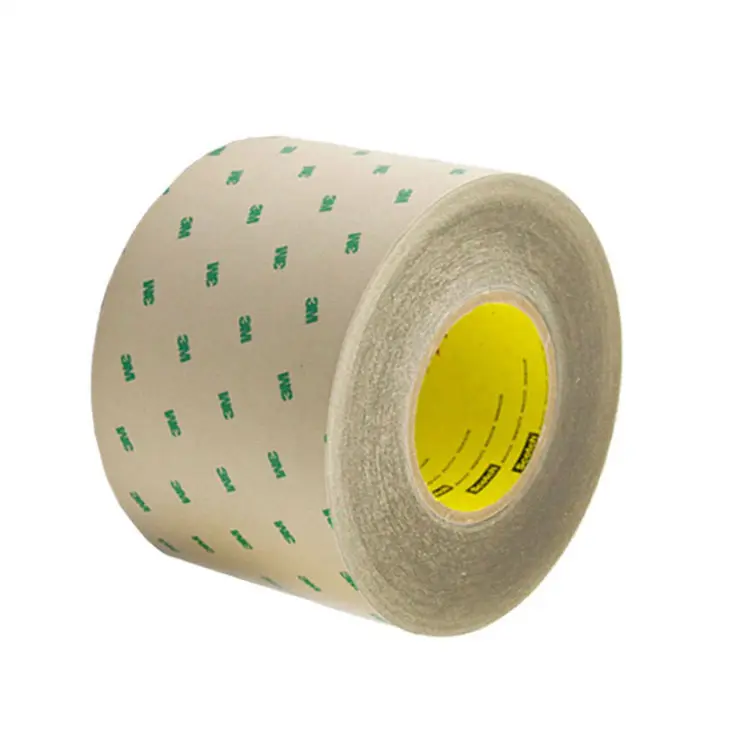

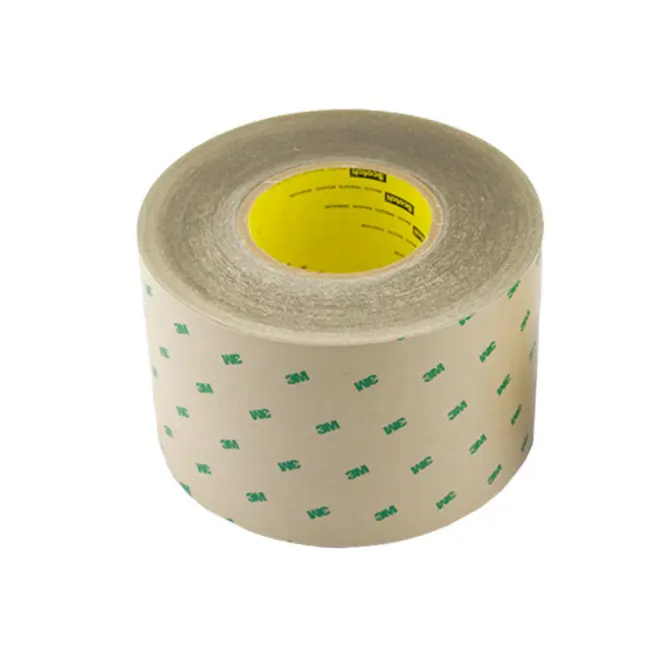

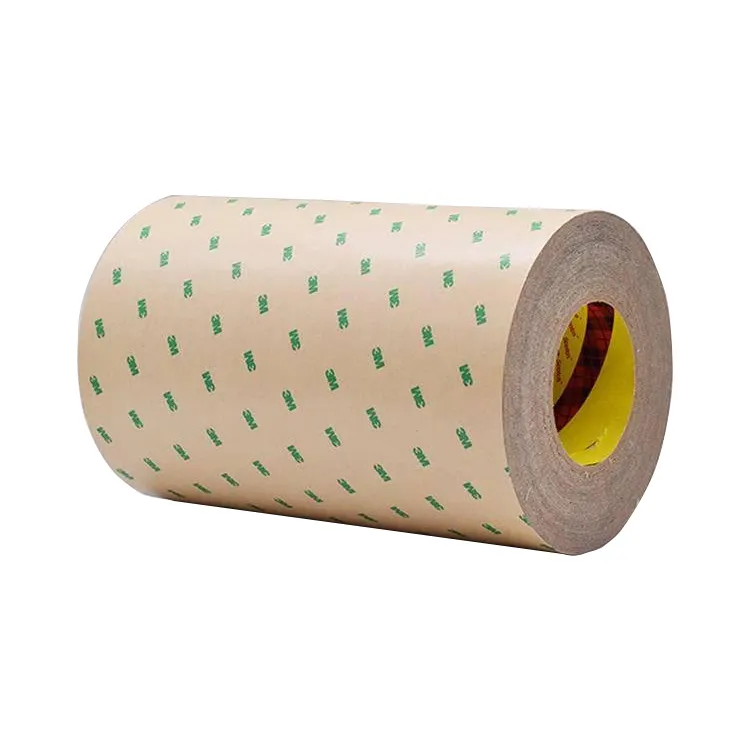

3M 9690

3M 9690 offers high adhesion to a wide variety of substrates, including plastics and foams.
The polyester film (PET) carrier provides dimensional stability and improved handling during slitting and die-cutting operations.

  • Total Tape Thickness without Liner (Imperial):5.5 mil
  • Total Tape Thickness without Liner (Metric):0.14 mm

3M 9690 features good conformability, making it ideal for die-cutting and laminating applications.
This double sided tape is often used for a variety of applications, including foam lamination and gasket attachment in general industrial applications.

3M 9690
3M 9690
3M 9690
3M 9690

3M 9690 Features

  • Offers excellent adhesion to a wide variety of substrates, including many plastics and foams
  • Polyester film (PET) carrier provides dimensional stability
  • Supplied with an 83 lb. poly-coated kraft liner
  • Temperature performance up to 300°F (149°C) for short term exposure and 200°F (93°C) for long term exposure

3M 9690 Applications

  • Cellular phone lens attachment
  • Foam lamination
  • Nameplates
  • Appliques
  • Decorative trim
  • Thermal and sound-dampening applications in the electronics and appliance industry
