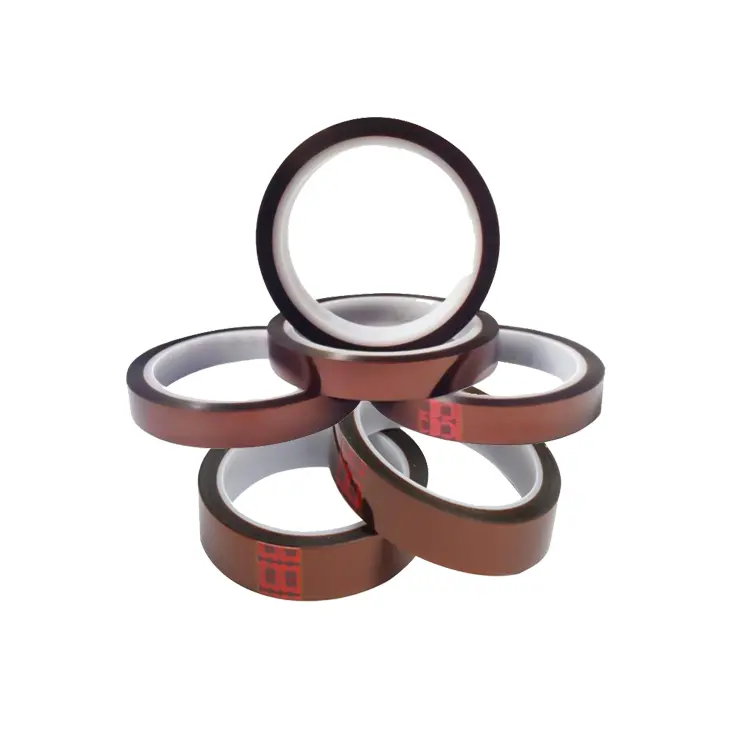

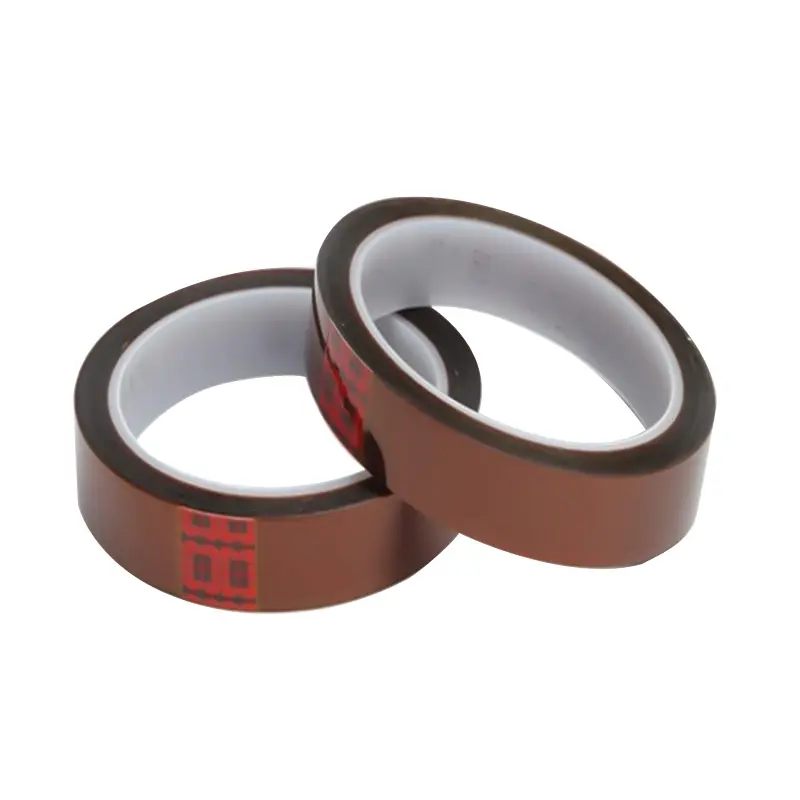

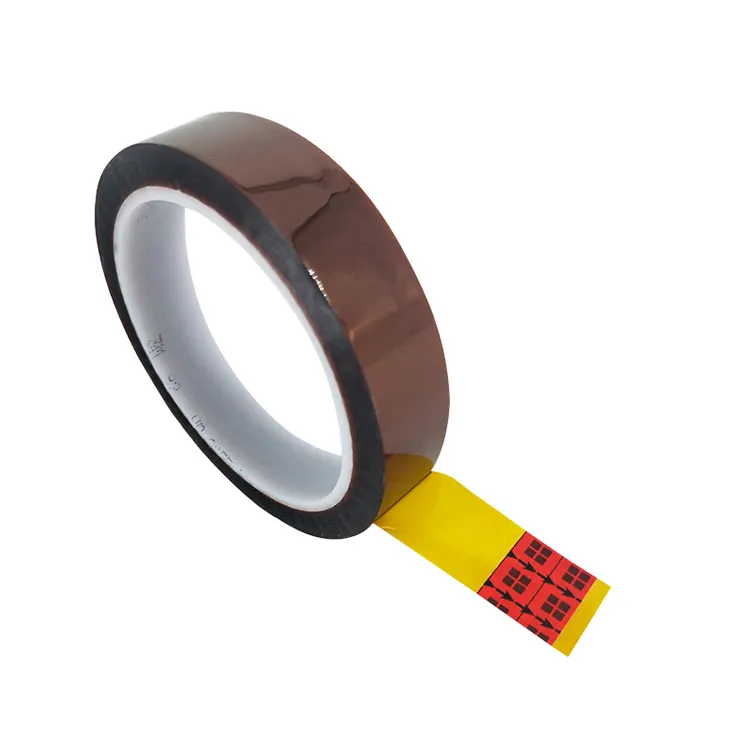

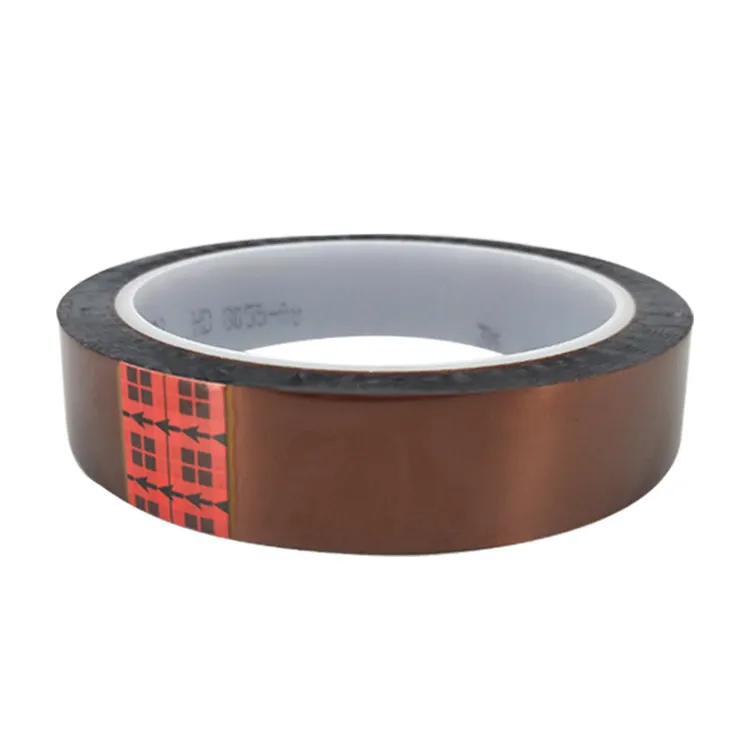

3M 92

3M 92 is a high-performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses, and capacitors. The flame retardant tape withstands a temperature range of 32 to 356 °F (0 to 180 °C).

  • Color: Amber
  • Backing (Carrier) Material: Polyimide Film
  • Backing thickness: 0.025mm
  • Dielectric Strength:7,500 V
  • Maximum Operating Temperature (Celsius):180 ℃
  • Total Tape Thickness without Liner (Metric):0.07 mm
  • Application: Insulation

3M 92 is used as a solder masking tape in a printed circuit board assembly. The tape has a smooth and uniform thermosetting silicone adhesive coating that offers good adherence while eliminating bare spots and lumps. UL Listed and RoHS 2011/65/EU Compliant.

  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Flame-retardant and has polyamide backing
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Flame-retardant and has polyamide backing
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Designed for anchoring leads and terminal boards
  • Withstands a temperature rating of -40 to 311 °F (-40 to 155 °C)
  • UL Listed and RoHS Compliant
  • UL Listed
3M 92
3M 92
3M 92
3M 92

3M 92 Features

  • Polyamide film backing provides exceptional heat and solvent resistance
  • Acrylic adhesive offers excellent adherence
  • Suitable for coils, harnesses, and capacitor applications
  • Withstands temperatures up to 356 °F (180 °C)
  • Flame-retardant
  • UL Listed and RoHS 2011/65/EU Compliant

3M 92 Applications

  • High-temperature electrical applications in which a tough, thin insulating material that is solvent-resistant is required for wrapping coils, transformers, capacitors, and wire harnesses.
  • It is also used as a cover layer material for many types of flexible printed circuits.
  • This tape is designed to provide thick insulation for coils, harnesses, and capacitors
