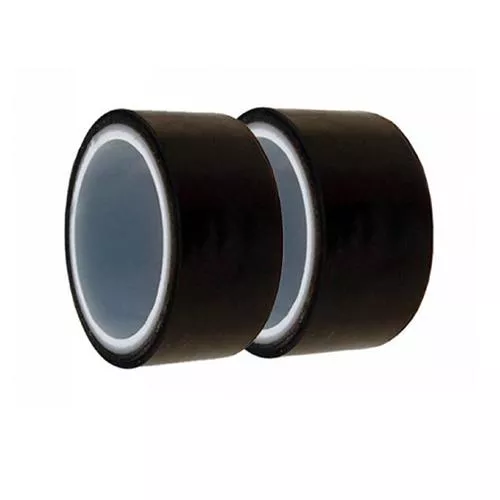

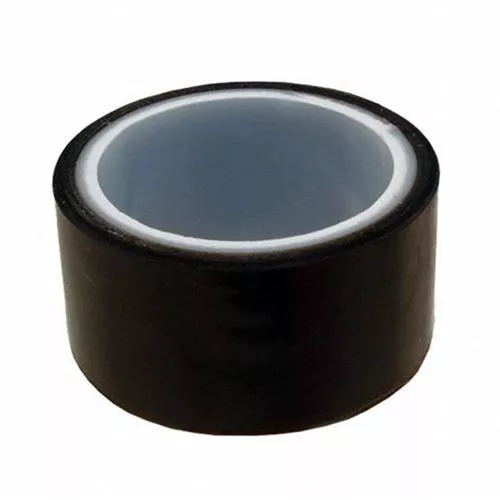

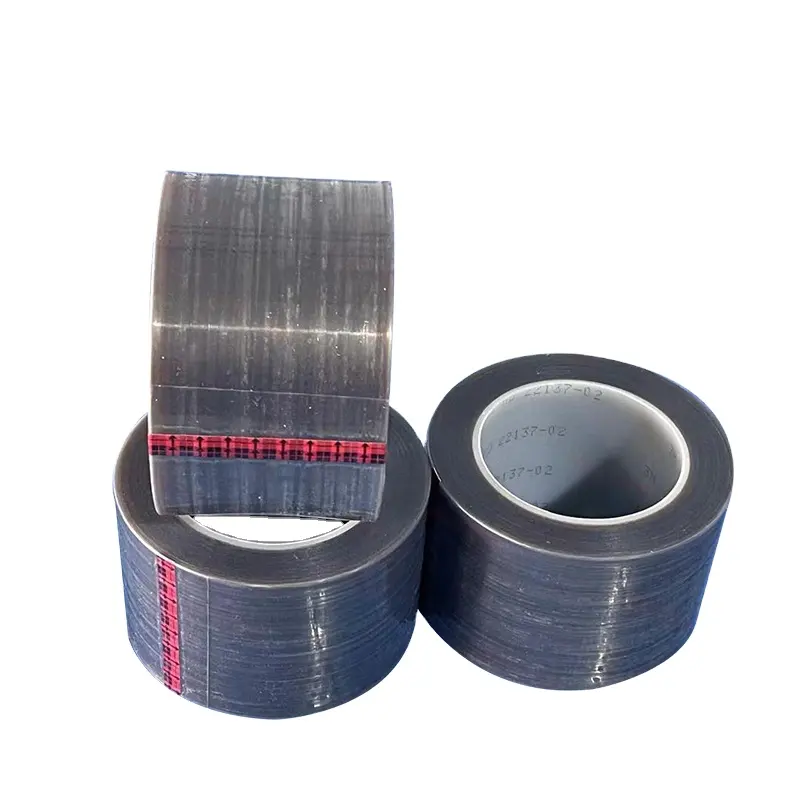

3M 5490

3M 5490 uses an extruded polytetrafluoroethylene (PTFE) film backing.
This tape offers an extremely low coefficient of friction which, in combination with a pressure-sensitive silicone adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in the movement of materials in many types of lay-flat applications.

  • Color: Brown
  • Thickness:0.094 mm
  • Backing: Extruded PTFE
  • Adhesive: Silicone
  • 3M  5490 resists curling when unwound from the roll and lies flatter than skived PTFE film tapes, creating a more uniform non-skid surface.
  • We developed this tape as a quick and easy solution to reduce friction between moving surfaces.
  • It functions as an anti-stick or easy-release medium where pressure, temperature changes, and other factors may create a measure of adhesion.
  • Applying 3M™ PTFE Film Tape 5490 can help improve surface movement, eliminate squeaks and rattles, and reduce machine noise.
  • PTFE is chemical resistant and can be used as a temporary chemical barrier.
  • The tape has a wide temperature use range, from -65°F/-54°C to 500°F/260°C, making it a suitable choice for a variety of applications.
3M 5490
3M 5490
3M 5490
3M 5490

3M 5490 Features

  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Silicone adhesive provides clean removal from a variety of surfaces
  • Wide temperature range for performance on heated machinery and equipment
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Excellent chemical resistance enables the tape to withstand challenging applications
  • High strength and abrasion resistance ensure reliability and performance to reduce friction, rattle, and machinery noise

3M 5490 Applications

  • Roll-wrap for web processing, belts, and plates where sticky materials and inks may occur
  • High-temperature wire bundling and harnessing
  • Squeak and noise reduction
  • The lining of chutes, toughs, and ducts
  • Shielding and protecting against chemicals
  • Mold release for composite bonding
