3M 5314

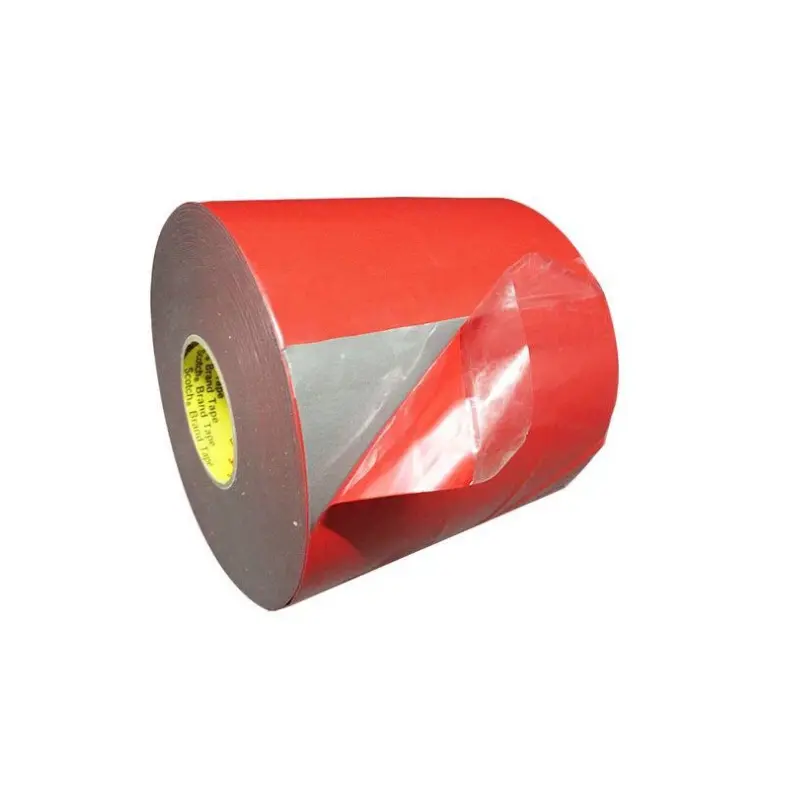

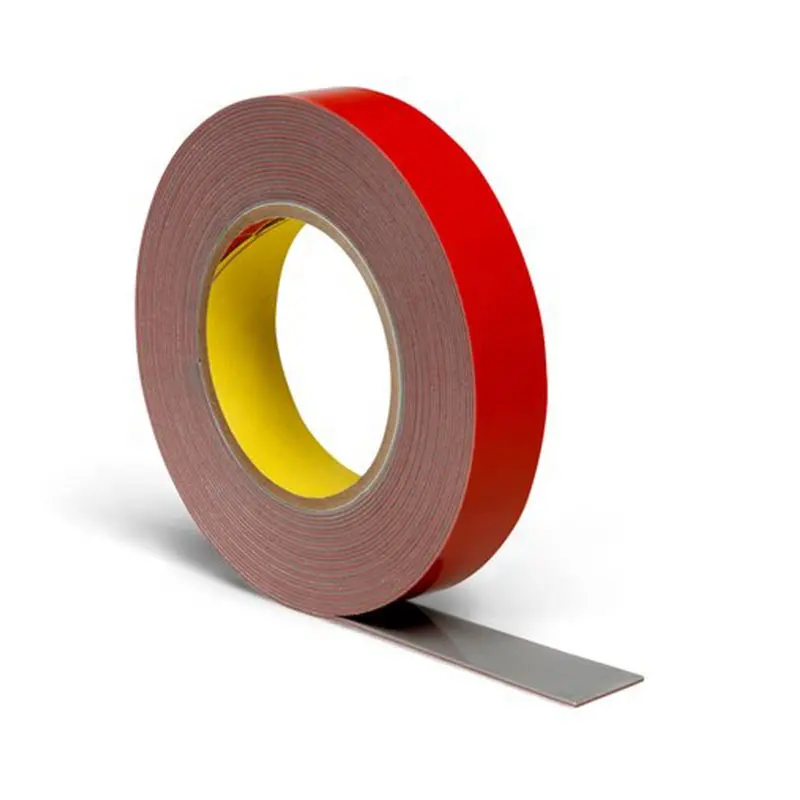

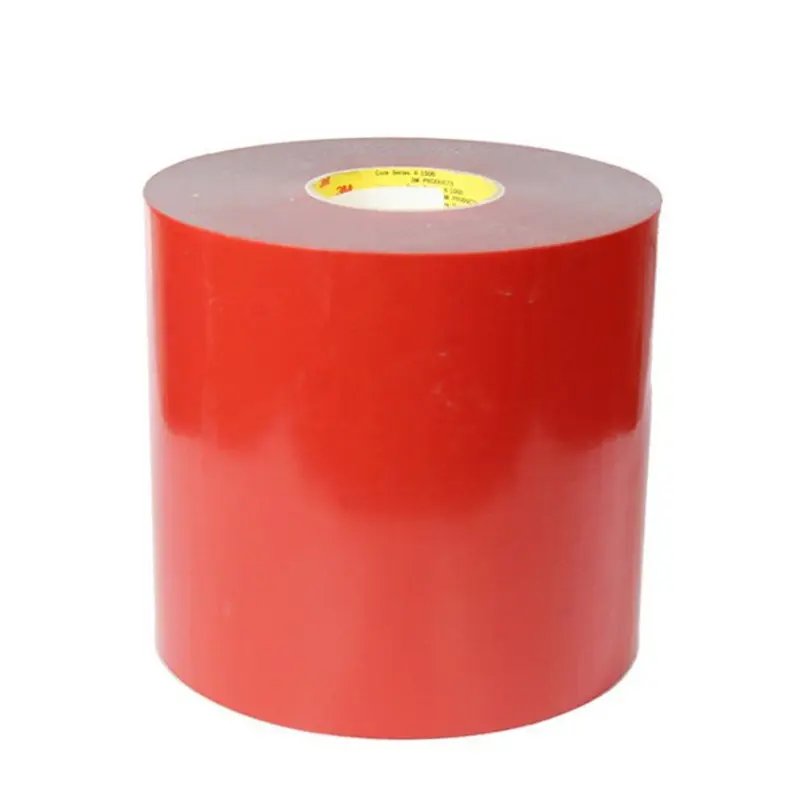

3M 5314 features two adhesives, one on each side of a 0.76 mm acrylic foam core, designed for robust performance and shear strength on automotive surfaces.

Liner side adhesive is formulated for high initial and final adhesion to rigid automotive clear coat systems.

The non-liner-side adhesive is excellent for plastics and other common trim materials (adhesion promoter recommended).

  • Color: Gray
  • Thickness: 0.76 mm

Features a gray, .76 mm acrylic foam core with two different adhesives.

The liner-side adhesive is formulated for very high initial and final adhesion to rigid clear coat paint systems.

The non-liner-side adhesive is excellent for bonding to automotive trim and other components.

The viscoelastic foam core conforms well even to complex geometries.

It is engineered for stress relaxation when exposed to high-stress loads and maintains bond-line aesthetics under normal stress loads.

The gray color of 3M™ Acrylic Foam Tape 5314 gives a pleasing bond line aesthetic.

A red, 3M branded liner provides an easy one-piece release for efficient application.

3M 5314
3M 5314
3M 5314
3M 5314

3M 5314 Features

  • Gray, closed cell 0.76 mm acrylic foam core delivers stress relaxation under load
  • Features two different adhesives – one on each side of the tape for effective bonding
  • The liner-side adhesive is designed for bonding to rigid clear coat systems
  • Non-liner-side is designed for use with adhesion promoter on automotive trim materials
  • Exhibits good conformability and excellent plasticizer resistance

3M 5314 Applications

  • Narrow body side moldings
  • Mechanically assisted sill plates
  • Roof slats
  • Thin or flexible nameplates
