3M 35

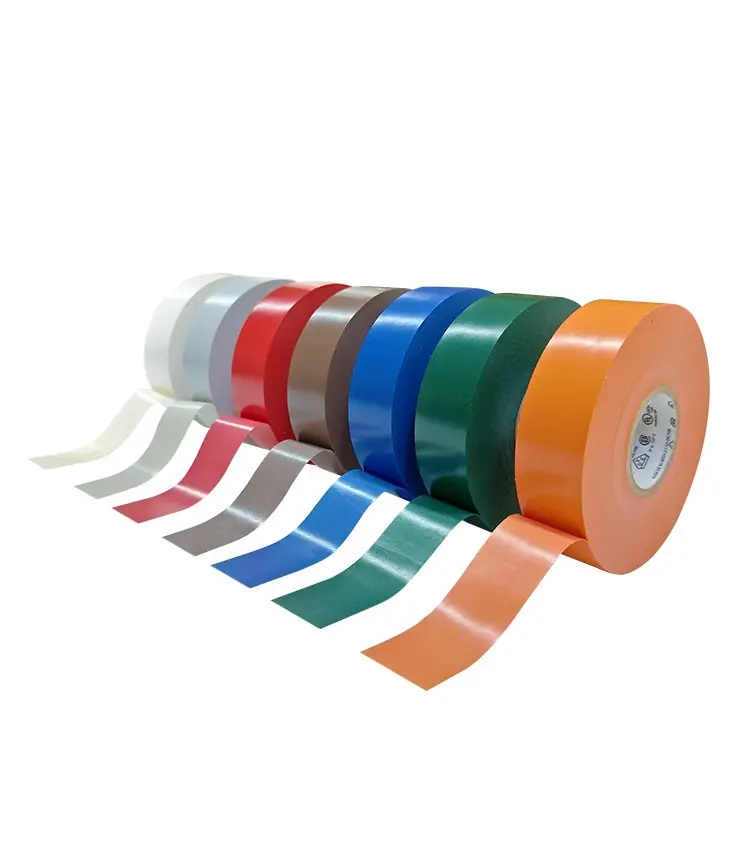

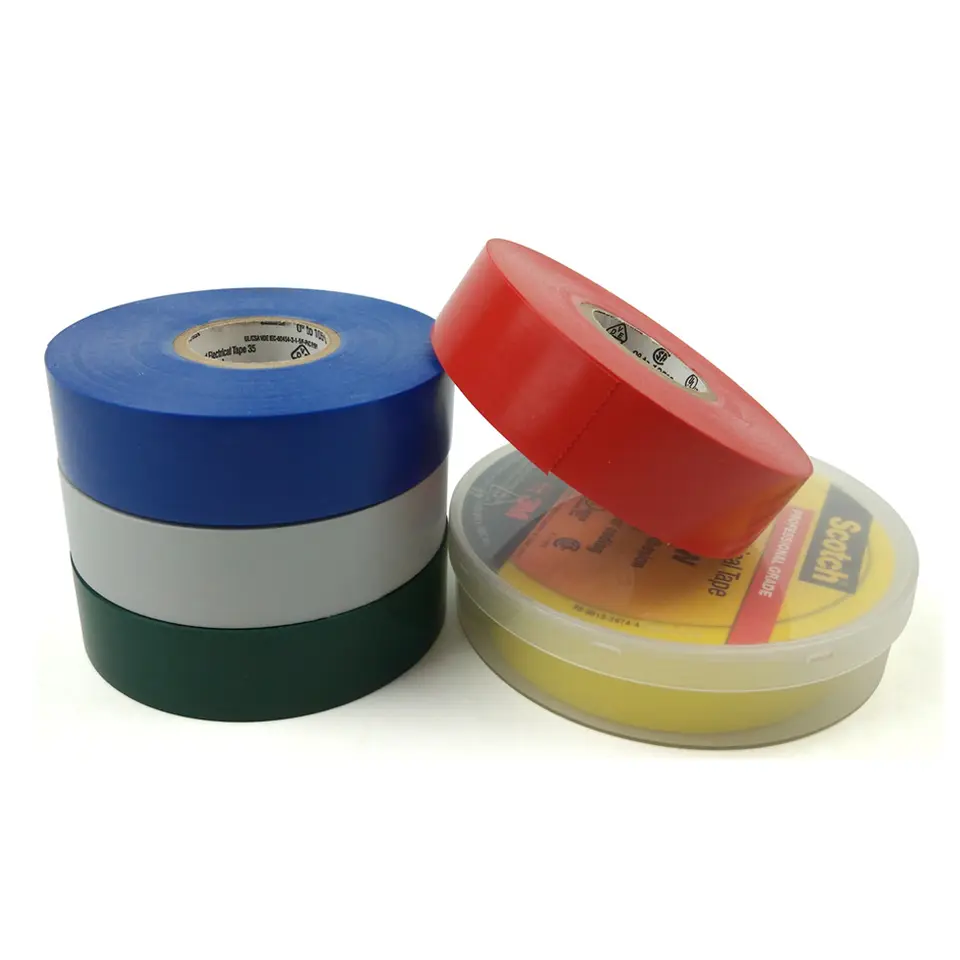

3M 35 is a 7-mil thick, premium-grade, electrical tape that comes in various colors. This flame retardant tape is suitable for wire and phase identification, color coding of motor leads and piping systems, and for marking safety areas. This tape is 600V rated and withstands a temperature range of 14ºF to 221ºF (-10ºC to 105ºC).

  • Color: Multicolor
  • Thickness: 7 mil | 0.178mm
  • Backing: Vinyl(PVC)
  • Rubber-based

3M 35 provides electrical and mechanical protection with the combination of an aggressive, pressure-sensitive, rubber resin adhesive and an elastic PVC backing. This tape is flame retardant and is highly resistant to UV rays and varying weather conditions.

  • It stretches easily and adheres virtually in any shape. Ideal for insulating electrical wires and is compatible with synthetic cable insulations, jackets, and splicing compounds. UL Listed, VDE, CSA Certified, and RoHS compliant.
  • Mainly used for all wire and cable joints with voltage levels below 600V and 105℃
    insulation.
  • Used for electrical insulation of busbars below 600V, as well as high voltage and
    Sheath protection of low voltage cables.
  • Used for joint protection and repair of the sheath of high-voltage cables.
  • Used for binding wires and cables
3M 35
3M 35
3M 35
3M 35

3M 35 Features

  • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
  • Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents, and many acids
  • Suitable for use in phase identification, color-coding of motor leads and piping systems, and for marking safety areas

3M 35 Applications

  • UL510: As primary insulation on applications up to 600V at a max temperature of 80°C (176°F) and min temperature of -10°C (14°F) on joints and splices in wires and cables in accordance with NFPA 70, National Electrical Code
  • CSA C22.2 No.197: As primary insulation on applications up to 1000V at a max temperature of 105°C (221°F) and a min temperature of -10°C (14°F) on joints and splices in wires and cables in accordance with Canadian Electrical Code, Part 1
  • IEC 60454-3-1: Classification Type 6, Designation IEC 60454-3-1-6/F-PVCP/90 for thermal index of 90°C (194°F) and min temperature rating of -10°C (14°F)
  • Industrial, Commercial, and Residential environments
  • Where Flame Retardant and Sunlight5 ,Cold Resistance rating is required – UL510
  •  Marking of safety areas and equipment and identifying cable on cell sites, phase coding, motor leads, and piping systems
  • Cable jacket repair (up to 600V (UL) / 1000V (CSA) as Primary Insulation) and as mechanical protection when overwrapping rubber splicing, and mastic tapes used on LV/MV/HV joints and splices
  • Critical indoor and outdoor operations as determined by end-user where the use of a general use vinyl electrical tape is not recommended
