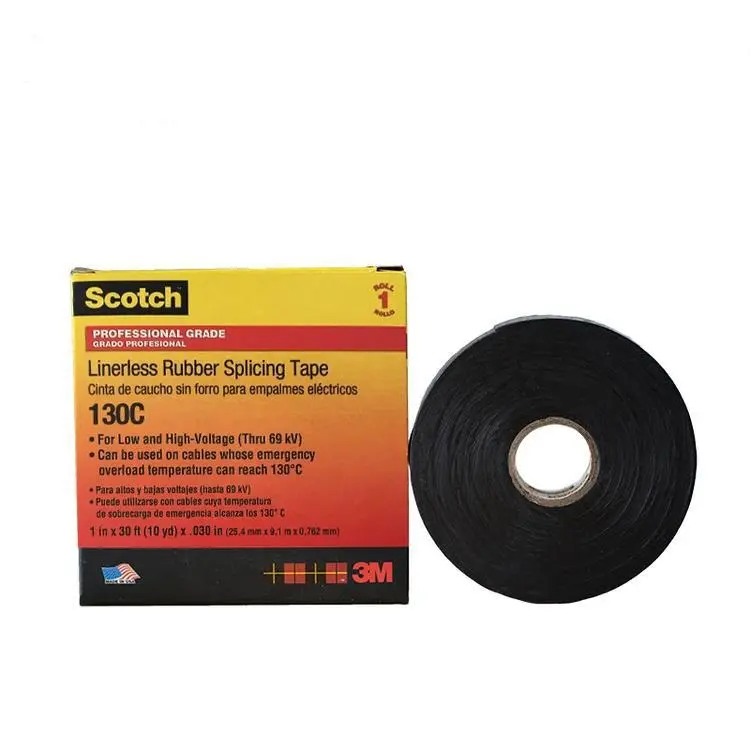

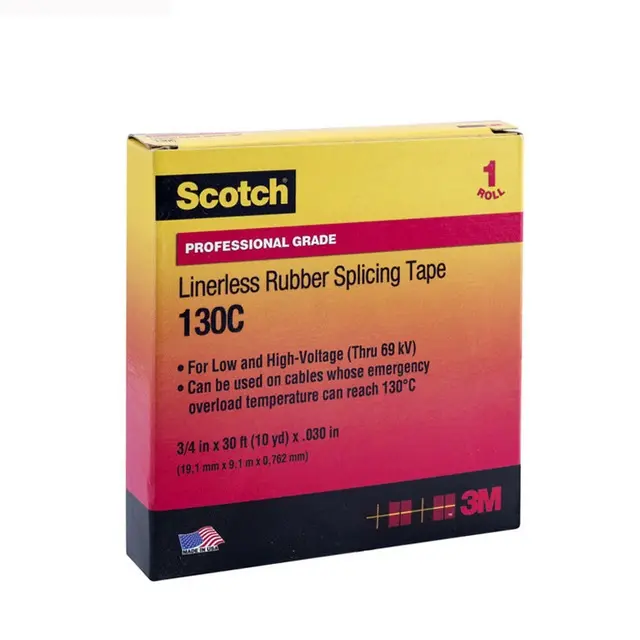

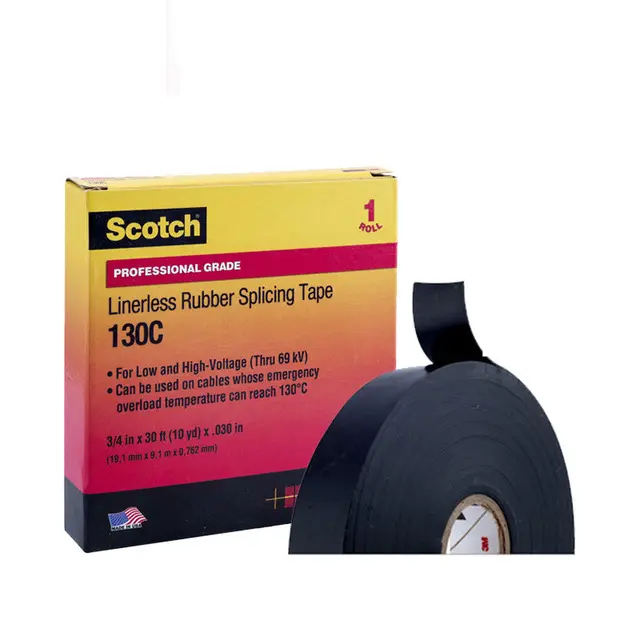

3M 130C

3M 130C is an ethylene propylene rubber tape-based insulating tape with good formability and no lining.
It can be applied to a continuous working temperature of 90 degrees and an emergency temperature of 130 degrees, which is conducive to heat dissipation at the joint.
With excellent physical and electrical properties, it can fill gaps quickly and play a role in sealing and preventing moisture.
It can be used for low-voltage insulation, and can also be used for voltage insulation up to 69000 volts.

  • Color: Black
  • Backing: Ethylene Rubber
  • Adhesive Type: Rubber
  • Application: Insulation
  • Thickness: 30 mil | 0.76mm

3M 130C is a linerless 30 mils thick, premium-grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.

3M 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self-fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric-insulated cables rated through 69 kV. This tape is designed for low and high voltage, bus bar insulation, end sealing of cables, and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void-free buildups. ASTM Approved and RoHS 2011/65/EU Compliant.

  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Provides an excellent thermal dissipation of splice heat
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Provides an excellent thermal dissipation of splice heat
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Withstands temperatures up to 194 °F (90 °C)
  • ASTM Approved and RoHS 2011/65/EU Compliant
3M 130C
3M 130C
3M 130C
3M 130C

3M 130C Features

  • Ethylene propylene rubber (EPR) material with good formability and no-release paper
  • High-voltage insulating tape, which can provide good heat dissipation for the high temperature of the intermediate joint
  • Can be used for insulation applications of 69kV and below
  • Long-term safe and reliable
  • Suitable for 194°F (90°C) continuous working temperature and 266°F (130°C) short-term overload operation
  • Can be used for low-voltage and high-voltage (up to 69 kV) applications
  • High-voltage insulation can provide good heat dissipation for the intermediate joint.
  • Has good physical and electrical properties. Can be used for 90℃ continuous working temperature and 130℃ short-term overload operation

3M 130C Applications

  • It can be applied to a continuous working temperature of 90 degrees and an emergency temperature of 130 degrees, which is conducive to heat dissipation at the joint.
  • It can be used for low-voltage insulation, and can also be used for voltage insulation up to 69000 volts.
  • Appliance and Fixture, Commercial Construction, Communications, Industrial Construction, Maintenance and Repair Operations, Mining, Solar, Utility, Wind Power
