3M 1170

3M 1170 has a 2.0-mil smooth aluminum foil backing with a conductive acrylic pressure-sensitive adhesive and liner. Aluminum is an alternative conductive backing material to copper.

  • Color: Silver
  • Thickness: 3.2 mil | 0.08mm
  • Backing: Aluminum Foil
  • Adhesive: Conductive Acrylic
  • Industries: Electronics

3M 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point-to-point electrical contact.
It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.

3M 1170 has an aluminum foil backing with a pressure-sensitive, electrically conductive, acrylic adhesive that ensures firm adherence.
The conductive particles in the adhesive offer low resistance between the substrate and the backing.
This tape is designed for applications such as static charge draining, seaming shielded rooms, cable wrapping, and providing surface contact to non solderable materials.
Ideal for EMI shielding, grounding, and static charge draining. UL Listed and RoHS 2011/65/EU Compliant.

  • The 1170 tape has common EMI shielding 2-mil thick aluminum foil backing.
  • Highly conductive particles in the acrylic adhesive provide a multitude of electrical paths between the application substrate and the surface of the copper foil.
  • The acrylic adhesive has good resistance to heat, oxidation, solvents, and oils.
  • The tape is UL Recognized for flame retardancy per UL 510.
  • This tape is designed for a variety of applications: point-to-point electrical contact, EMI/RFI shielding, grounding, and static charge draining.
  • These tapes can be used in both electronic & electrical devices, shielded rooms, and EMI test laboratories for prototyping, design, and troubleshooting.
  • The 1170 tape is available from 3M in log rolls (standard size of 23-inch x 18 yds or 584 mm x 16,5 m) to 3M slitter/converters.
  • Also, 3M offers to 3M authorized distributors (and slitter/converters) various size slit rolls for resale to end users. Custom die-cut and formed parts are available from 3M slitter/converters.

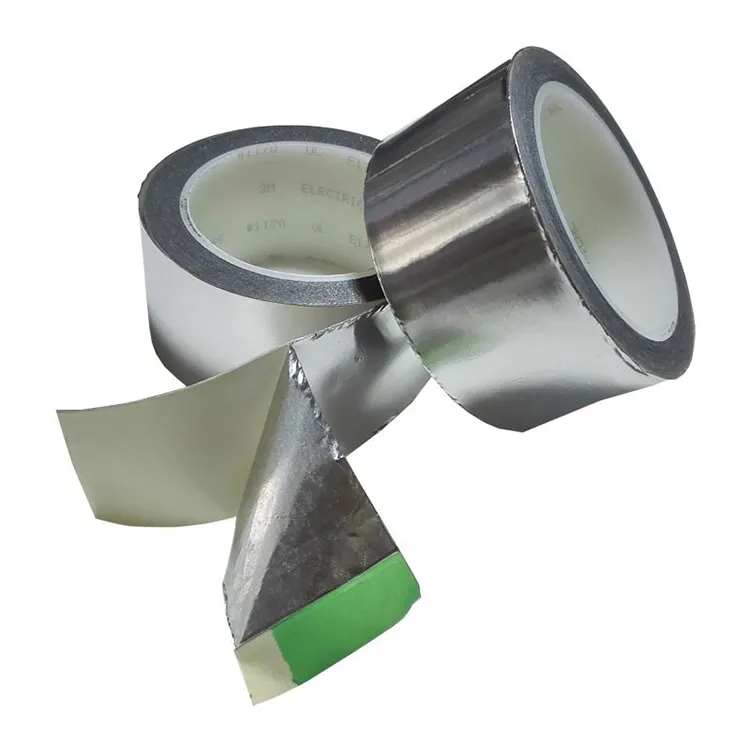

3M 1170

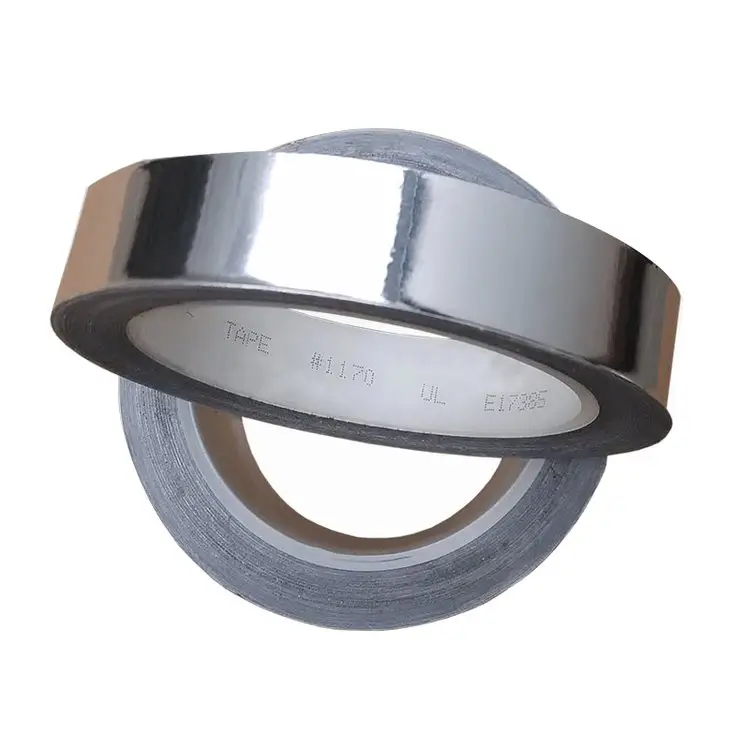

3M 1170

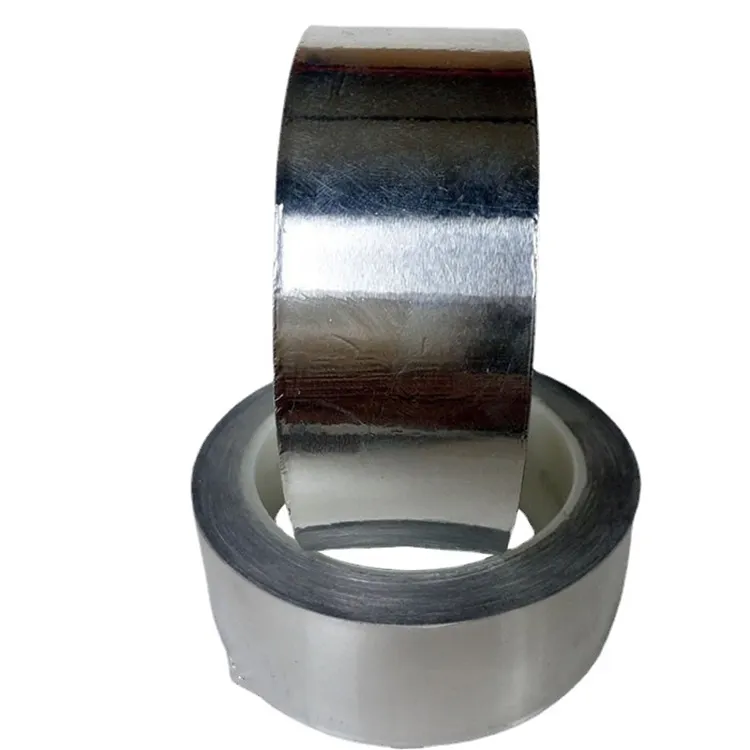

3M 1170

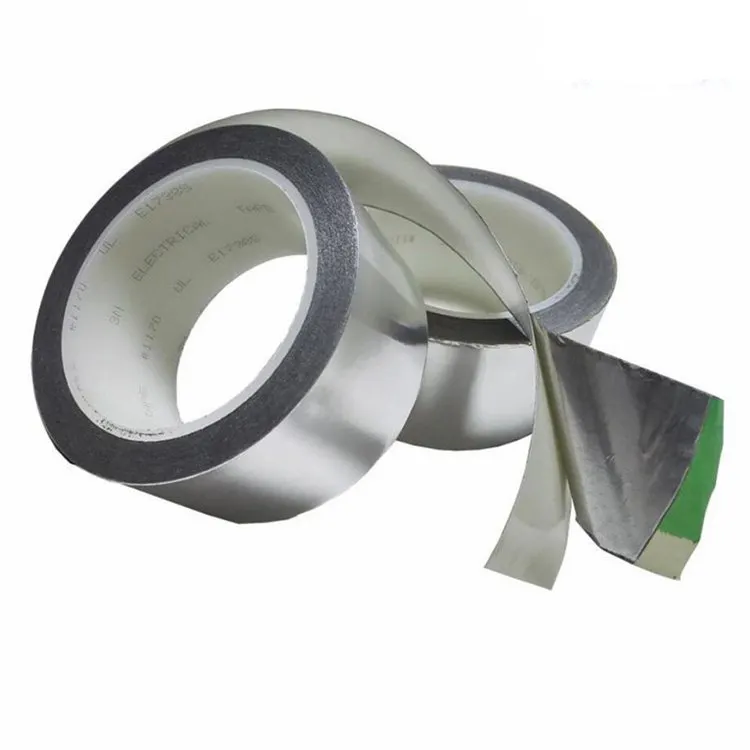

3M 1170

3M 1170 Features

  • Dead soft 1-ounce (2.0-mil) aluminum foil backing for good shielding effectiveness and converting (slitting and die cutting)
  • UL recognized flame-retardancy per UL 510 for applications needing this property
  • Conductive particles in the adhesive provide low contact resistance between the substrate and the backing to drain static charge
  • The acrylic pressure-sensitive adhesive has good resistance to heat, oxidation, solvents, and oils
  • The removable liner makes it easy to handle and die-cut complex shapes
  • There are both standard and custom roll widths and lengths to meet a variety of application needs

3M 1170 Applications

  • Commonly used for EMI/RFI shielding applications in the electronics industry and for static charge draining, seaming shielded rooms, cable wrapping, and surface contact to non-solderable materials
  • Can be die-cut and offers a multitude of uses in electrical design and test laboratories for prototyping, design, and troubleshooting
  • Adhesive requires no moisture, solvents, heat, or other manner of preparation to affect application
  • Flame Retardant per UL-510A Standard
